NSX DLR – Canceled changes

Written by

NSX DLR – Canceled changes

Affected Versions: 6.3.6, 6.4.1

Symptoms

The GUI shows either the following errors or symptoms:

The Status of the DLR’s is missing.

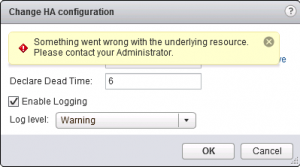

Something went wrong with the underlying resource. Please contact your Administrator.



DLR Deployment Status is missing.



Research

Syslog outputs

CLUSTERNAME vmkernel: cpu13:1756676)WARNING: vdrb: VdrCloseConnection:497: SYS:Could not aquire portset for port 33554440 status: Not found
CLUSTERNAME vmkernel: cpu2:35416)WARNING: vdrb: VdrProcessRouteUpdateMessageDeleteRoutes:382: CP:[I:0xbad0003] Route Delete: Unable to Delete prefix = 0x801fea9, prefixLength = 30 status: Unknown status
CLUSTERNAME vmkernel: cpu47:45037)WARNING: vdrb: VdrCPProcessVdrInstanceMsg:2570: CP:Instance Create: Failed for [I:0x186a0] status: Address already in use



NSX-Manager – Power-NSX Cluster Health Status

=> The Host relates to CLUSTERNAME Cluster and the Cluster looks fine
O-------------------------------------------------------------------------------O
Name HAEnabled HAFailover DrsEnabled DrsAutomationLevel
Level
---- --------- ---------- ---------- ------------------
CLUSTERNAME True 1 True FullyAutomated
featureId status
--------- ------
com.vmware.vshield.vsm.nwfabric.hostPrep GREEN
com.vmware.vshield.firewall GREEN
com.vmware.vshield.vsm.vxlan GREEN
com.vmware.vshield.vsm.messagingInfra GREEN
O-------------------------------------------------------------------------------O



NSX-Manager CLI – Edge Health Status

HOSTNAME> show edge all
NOTE: CLI commands for Edge ServiceGateway(ESG) start with 'show edge'
CLI commands for Distributed Logical Router(DLR) Control VM start with 'show edge'
CLI commands for Distributed Logical Router(DLR) start with 'show logical-router'
Edges with version >= 6.2 support Central CLI and are listed here
Legend:
Edge Size: Compact - C, Large - L, X-Large - X, Quad-Large - Q
Edge ID Name Size Version Status
edge-1 ESG-1 L 6.3.6 GREEN
edge-2 ESG-2 L 6.3.6 GREEN
edge-3 ESG-3 Q 6.3.6 GREEN
edge-4 DLR-1 C 6.3.6 YELLOW
edge-5 DLR-2 C 6.3.6 YELLOW
edge-6 ESG-4 Q 6.3.6 GREEN
edge-7 ESG-5 Q 6.3.6 GREEN
edge-9 ESG-6 C 6.3.6 GREEN



ESXi Host – netCP Agent monitor restart

During the restart the CLI outputs the following notification:

[root@Host:~] etc/init.d/netcpad status
netCP agent service is running
[root@Host:~] etc/init.d/netcpad restart
watchdog-netcpaMonitor: Terminating watchdog process with PID 35422
netCP agent service monitor is stopped
watchdog-netcpa: Terminating watchdog process with PID 35391
Failed to release memory reservation for netcpa
Failed to release memory reservation for netcpa
Failed to release memory reservation for netcpa
Failed to release memory reservation for netcpa
Failed to release memory reservation for netcpa
netCP agent service is stopped
Memory reservation set for netcpa
Reload security domains
netCP agent service starts
netCP agent service monitor is started
[root@Host:~] etc/init.d/netcpad status
netCP agent service is running



Check NSX Edge Storage

To check the NSX Storage you need the VMware Support Login.

DCA-ESG01>show system storage
Filesystem Size Used Avail Use% Mounted on
/dev/root 444M 366M 55M 88% /
tmpfs 497M 496M 1M 99% /run
/dev/sda2 43M 2.2M 38M 6% /var/db
/dev/sda3 27M 413K 25M 2% /var/dumpfiles
/dev/sda4 32M 1.1M 29M 4% /var/log



Solution

The following article match the given circumstance: KB57003
“tmpfs partition on DLR’s and Edges in NSX 6.3.6 and NSX 6.4.1, configured with HA can get full, preventing any configuration changes (57003)”



=> NSX Edges in HA-Mode from Version 6.3.6 to 6.4.1 are affected
=> Workaround The Active Edge VM need to be rebooted to get them back into a working state.
=> My experience is to resync the Edge increase the chance to get the Edge back.
=> This issue is resolved in 6.4.2
